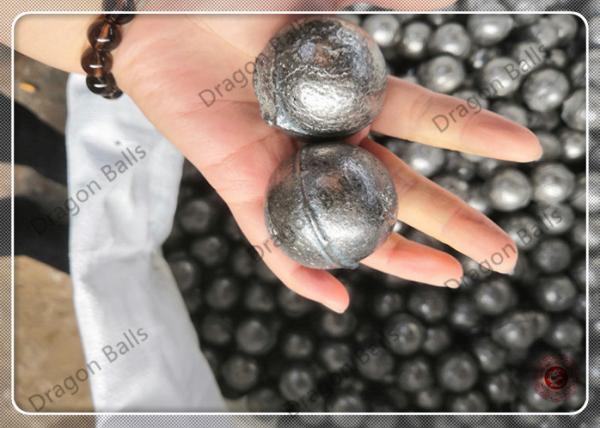

    Power Station Cast Iron Ball Casting Ball Grinding Balls For Ball Mill



    1. Cast Iron Ball is popular grinidng media for ball mill, please tell your size, chrome content or hardness, we will give the most competition qutation ASAP.

    Following is the detail:

    2. Classification
    According to the different chemical elements , Cast balls can be divided into Low Cr,Medium Cr and High Cr. At present, the above materials are widely used all over the world, that’s the conventional materials, if there are special needs, can be customized.

    3.Manufacturing process
    Casting balls are melted in electric furnace and poured into moulds after scientific proportioning. High chromium cast balls are also processed by oil quenching.

    4. Detail Specifications
    ① Chemical Composition


    Material


    Chemical Composition


    Low Cr


    C:2.2-3.4, Si:≤1.2, Mn:0.5-1.5, P:≤0.06, S:≤0.06, Cr:1.0-1.5


    Medium Cr


    C:2.0-3.2, Si:<1.0, Mn:0.5-2.5, P:≤0.06, S:≤0.06, Cr:≥5


    High Cr


    C:2.0-3.2, Si:<1.0, Mn:0.5-2.5, P:≤0.06, S:≤0.06, Cr:≥10



    ② Hardness


    Type


    Low Cr


    Medium Cr


    High Cr


    20mm-150mm


    45-50


    48-55


    58-63



    ③ Dragon Balls Weight

    Size(mm)2030405060708090100110120130140150
    Weight(kg)0.0330.1110.2610.5120.8831.4022.0922.981.0875.447.0629.00811.2513.83
