60mm 70mm B2 Forged Steel Grinding Balls For Ball Mill Mining
Cement
1. Grinding Media Balls Specifications
Diameter (mm) | Diameter Tolerance (mm) | Approx Weight of per ball(kg) | Average numbers per ton |
| 20 | ＋1,－0.5 | 0.033 | 30303 |
| 30 | ＋2,－1 | 0.11 | 9090 |
| 40 | ＋2,－1 | 0.261 | 3831 |
| 50 | ＋2,－1 | 0.512 | 1961 |
| 60 | ＋2,－1 | 0.883 | 1132 |
| 70 | ＋3,－1.5 | 1.402 | 713 |
| 80 | ＋3,－1.5 | 2.092 | 478 |
| 90 | ＋3,－1.5 | 2.98 | 335 |
| 100 | ＋3,－1.5 | 1.087 | 244 |
| 110 | ＋3,－1.5 | 5.44 | 183 |
| 120 | ＋3,－1.5 | 7.062 | 141
|
2. Grinding balls is used in ball mill for mining,cement plant
,power plant and industry.
① Mining ( Gold, copper, iron ore )
② Cement plant
③ Coal mill
④ Sag mill
⑤ Industry
⑥ All the ball mill or rods mill machine
3. Dragon balls main product
| Main Product | Classification |
| Cast Iron Ball | Low Cr,Medium Cr,High Cr |
| Forged Ball | C45,60Mn,B2,B3 |
| Hot Rolling Ball | C45,60Mn,B2,B3 |
| Cylpebs | Low Cr,Medium Cr,High Cr |
| Grinding Rods | C45,60Mn,B2,B3 |
| Liners | Mn13Cr2,High Chrome |
4. Grinding Media balls mining size
Forged ball 20mm-150mm
Cast balls 12mm-150mm
Cylpebs 6×6-50×60
Hot Rolling Ball 20mm-40mm
5. Grinding Media balls Chemical elements
Forged ball ,hot rolling balls chemical elements
| Material | Chemical Composition |
| C | Si | Mn | Cr | P | S | Ni | Cu |
| C45 |
0.42-0.5 |
0.17-0.37 |
0.5-0.8 |
≤0.25 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.25 |
| 60Mn |
0.55-0.65 |
0.17-0.37 |
0.7-1.0 |
≤0.25 |
<0.04 |
<0.04 |
≤0.3 |
≤0.25 |
| B2 |
0.72-0.85 |
0.17-0.37 |
0.7-1.0 |
0.4-0.6 |
≤0.025 |
≤0.025 |
≤0.02 |
≤0.02 |
| B3 |
0.58-0.66 |
1.3-1.9 |
0.65-0.8 |
0.7-0.9 |
≤0.025 |
≤0.025 |
≤0.02 |
≤0.02 |
Cast Ball ,Cylpebs chemical elements
| Material | C | Si | Mn | Cr | P | S |
| Low Cr | 2.2-3.4 | ≤1.2 | 0.5-1.5 | 1.0-1.5 | ≤0.06 | ≤0.06 |
| Medium Cr | 2.0-3.2 | <1.0 | 0.5-2.5 | ≥5 | ≤0.06 | ≤0.06 |
| High Cr | 2.0-3.2 | <1.0 | 0.5-2.5 | ≥10 | ≤0.06 | ≤0.06 |
6. Grinding balls Hardness
Forged ball ,hot rolling balls hardness
Size |
C45 |
60Mn |
B2 |
B3 |
| 20mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 30mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 40mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 50mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 60mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 70mm | 53-56 | 58-62 | 60-64 | 61-63 |
| 80mm | 53-56 | 58-62 | 59-63 | 60-65 |
| 90mm | 50-55 | 58-62 | 57-61 | 60-65 |
| 100mm | 48-52 | 57-61 | 56-60 | 60-65 |
| 110mm | 48-52 | 57-61 | 55-60 | 58-64 |
| 120mm | 48-52 | 57-61 | 55-60 | 56-63 |
| 130mm | 48-52 | 57-61 | 55-60 | 56-63 |
| 140mm | 48-42 | 57-61 | 55-60 | 56-63 |
| 150mm | 48-52 | 57-61 | 55-60 | 56-63 |
Cast ball ,cylpebs hardness
| Type | Low Cr | Medium Cr | High Cr |
| 20mm-150mm | 45-50 | 48-55 | 58-63 |
7. Grinding balls Production process
Forged balls are forged by air hammer after being heated by
electric furnace.
Cast Balls and cylpebs are melted in electric furnace and poured
into moulds after scientific proportioning. High chromium balls and
cylpebs are also processed by oil quenching.
8. The difference of the forged ball and cast ball
① Different production line
② Different raw material
③ Different chemical element
④ Different core hardness and core hardness
9. How to choose the material
① According to the different customer need and usage.
② According to the ball mill size, dry grinding or wet grinding. We
can recommend you the most suitable products.

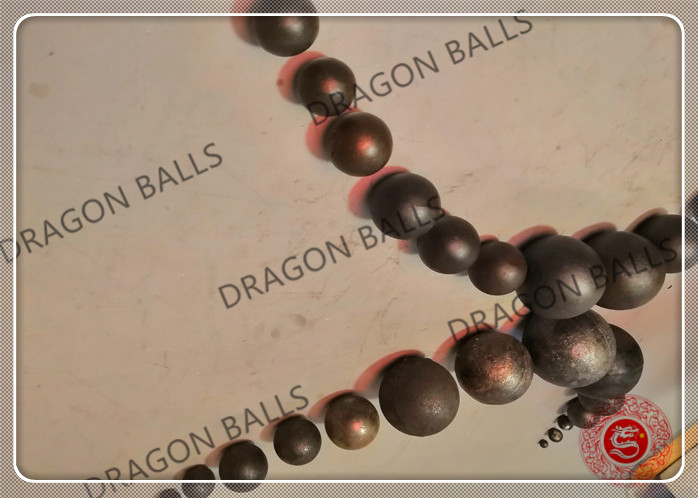

Forged Steel Grinding Media Balls
