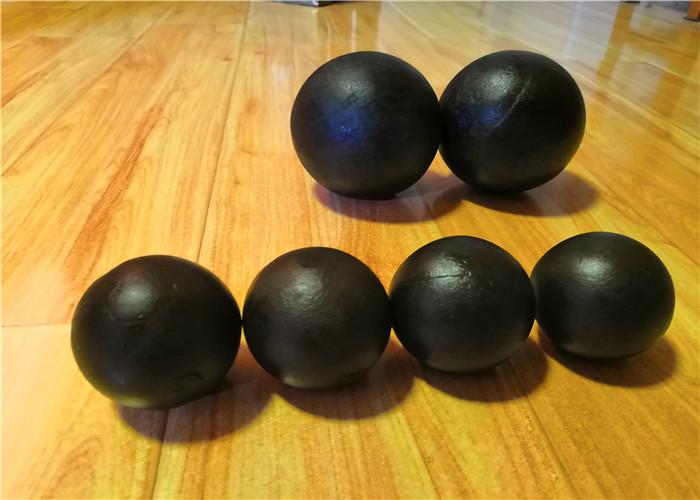

B2 B3 Customized Material Hot Rolling Steel Balls Forged Grinding
Balls
1. Grinding steel ball Detail Specifications
① Weight
| Size(mm) | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 |
| Weight(kg) | 0.033 | 0.111 | 0.261 | 0.512 | 0.883 | 1.402 | 2.092 | 2.98 | 1.087 | 5.44 | 7.062 | 9.008 | 11.25 | 13.83
|
② Chemical Composition
| Material | Chemical Composition |
| C | Si | Mn | Cr | P | S | Ni | Cu |
| C45 |
0.42-0.5 |
0.17-0.37 |
0.5-0.8 |
≤0.25 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.25 |
| 60Mn |
0.55-0.65 |
0.17-0.37 |
0.7-1.0 |
≤0.25 |
<0.04 |
<0.04 |
≤0.3 |
≤0.25 |
| B2 |
0.72-0.85 |
0.17-0.37 |
0.7-1.0 |
0.4-0.6 |
≤0.025 |
≤0.025 |
≤0.02 |
≤0.02 |
| B3 |
0.58-0.66 |
1.3-1.9 |
0.65-0.8 |
0.7-0.9 |
≤0.025 |
≤0.025 |
≤0.02 |
≤0.02 |
③ Hardness
Size |
C45 |
60Mn |
B2 |
B3 |
| 20mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 30mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 40mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 50mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 60mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 70mm | 53-56 | 58-62 | 60-64 | 61-63 |
| 80mm | 53-56 | 58-62 | 59-63 | 60-65 |
| 90mm | 50-55 | 58-62 | 57-61 | 60-65 |
| 100mm | 48-52 | 57-61 | 56-60 | 60-65 |
| 110mm | 48-52 | 57-61 | 55-60 | 58-64 |
| 120mm | 48-52 | 57-61 | 55-60 | 56-63 |
| 130mm | 48-52 | 57-61 | 55-60 | 56-63 |
| 140mm | 48-42 | 57-61 | 55-60 | 56-63 |
| 150mm | 48-52 | 57-61 | 55-60 | 56-63 |
④ Dragon balls specifications
Diameter (mm) | Diameter Tolerance (mm) | Approx Weight of per ball(kg) | Average numbers per ton |
| 20 | ＋1,－0.5 | 0.033 | 30303 |
| 30 | ＋2,－1 | 0.11 | 9090 |
| 40 | ＋2,－1 | 0.261 | 3831 |
| 50 | ＋2,－1 | 0.512 | 1961 |
| 60 | ＋2,－1 | 0.883 | 1132 |
| 70 | ＋3,－1.5 | 1.402 | 713 |
| 80 | ＋3,－1.5 | 2.092 | 478 |
| 90 | ＋3,－1.5 | 2.98 | 335 |
| 100 | ＋3,－1.5 | 1.087 | 244 |
| 110 | ＋3,－1.5 | 5.44 | 183 |
| 120 | ＋3,－1.5 | 7.062 | 141
|
2. Dragon Balls Main Product
Forged grinding ball
Hot Rolling Ball
Cast Iron Ball
Grinding Cylpebs
Grinding Rods
Liners
3. Hot Rolling Ball Different Name in Different Place
Hot Rolling Ball
Rolled Ball
Forged Ball
Grinding Media Ball
Rolling Ball
4. Grinding steel ball Application
Hot rolling balls are used in ball mills, mainly in mines, cement
plants, power plants and so on.
① Mining ( Gold, copper, iron ore )
② Cement plant
③ Coal mill
④ Sag mill
⑤ Industry
⑥ All the ball mill or rods mill machine
5. Grinding steel ball Classification
According to the different chemical elements , hot rolling balls
can be divided into C45,60Mn,B2 and B3. At present, the above four
materials are widely used all over the world, that’s the
conventional materials, if there are special needs, can be
customized.
① 45#
② 60Mn
③ B2
④ B3
6. Hot Rolling Ball Manufacturing process
Hot rolling ball is making by hot rolling machine ,water
quenching,double-layer insulating barrel and so on a series
process.
7. Hot Rolling Ball Quality Control
① Factory test
Hot rolling balls test is an very important step. Real-time
detection will be carried out in the production process. Balls
produced in each shift will be sampled in large quantities and
tested for size, hardness, chemical composition, drop test, core
pulling and impact value to ensure the quality of steel balls.
② The third party test
According to the customer different demand,hot rolling balls can be
tested by any third party.
Grinding steel ball factory
We can accept following any third party test.
Core test
Grinding steel ball
